Coolant technology from a single sourceHAMMA Umwelttechnik · Germany

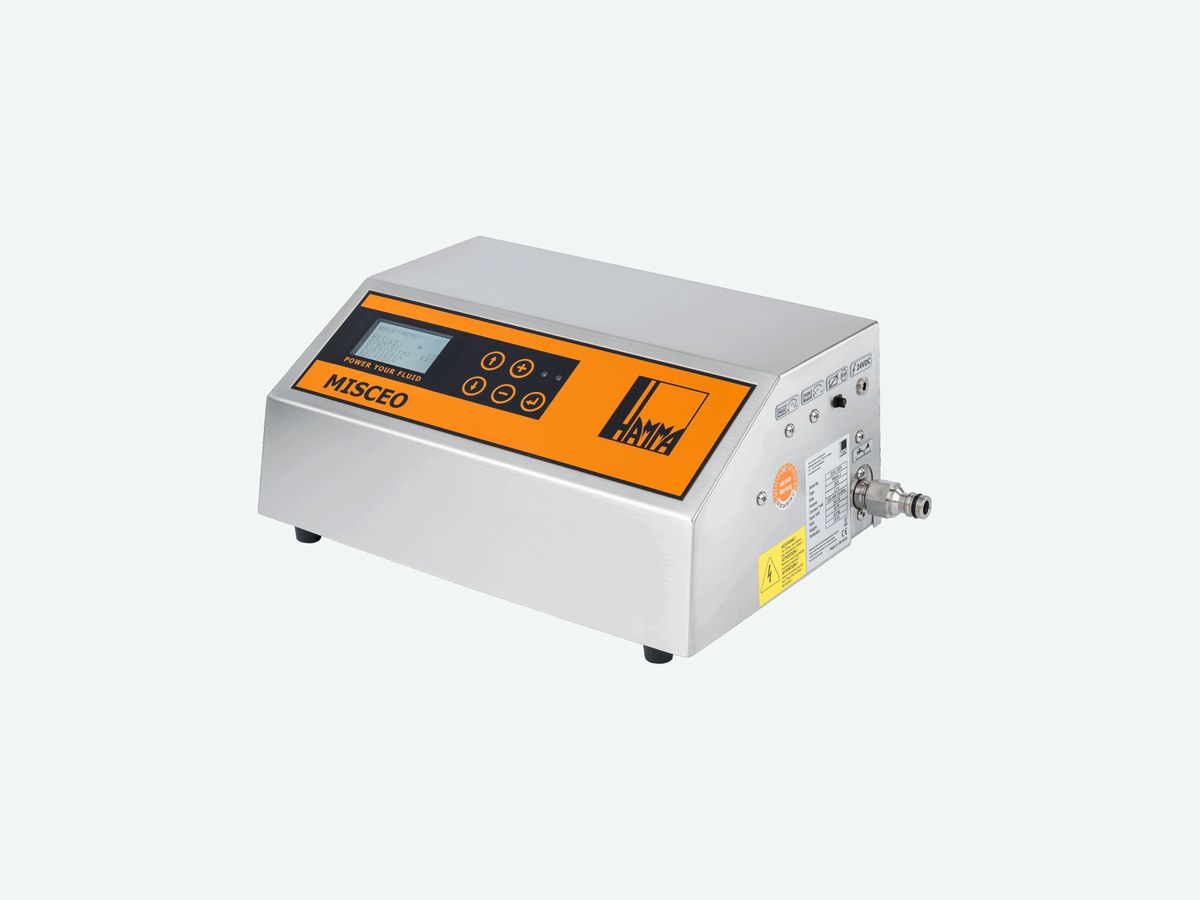

HAMMA MISCEO Precise mixing, in 0.1% steps
Electronically controlled mixing device for water-miscible coolants. It switches off automatically at the set quantity and warns you when the concentrate runs low.
- Mixing ratio 0.5–15%
- 600–2000 l/h
- 150 × 274 × 365 mm · 8.5 kg
Why mixing accuracy matters
An emulsion that is too weak brings corrosion and tool wear; one that is too strong wastes concentrate and causes foaming. The MISCEO holds the set ratio in 0.1% steps — without manual mixing or guesswork.
- Mixing ratio from 0.5% to 15%, in 0.1% steps
- Switches off when the set number of litres is reached
- Monitors the concentrate level and detects empty containers
- Flexible hose lengths — the machine can be filled directly
- Simple, menu-driven operation
| Mixing capacity | 600–2000 l/h |
|---|---|
| Mixing ratio | 0.5–15% (in 0.1% steps) |
| Dimensions (height × width × depth) | 150 × 274 × 365 mm |
| Weight | 8.5 kg |
| Mains voltage | 100–240 V / 50–60 Hz |
| Operating voltage | 24 V DC |
| Power consumption | 60–65 W |
| Water pressure | max. 6 bar |
| Operating requirement | system separator to DIN EN 1717 |
Three versions — what is the difference
The mixing unit, the capacity and the size are the same. The versions differ in their inputs and outputs and in the degree of automation.
| Feature | MISCEO Standard | MISCEO Exclusive | MISCEO Premium |
|---|---|---|---|
| Item no. | 2001010 | 2001011 | 2001011-2 |
| Switches off at the set number of litres | yes | yes | yes |
| Empty concentrate container detection | yes | yes | yes |
| Overflow monitoring / emergency stop input | — | yes | yes |
| External information output | — | yes | yes |
| Intelligent pressure control | — | yes | yes |
| Automatic MIN and MAX input | — | — | yes |
Source: HAMMA Umwelttechnik, hamma-uwt.de (September 2026). Operating requirement: system separator to DIN EN 1717.
Scope of delivery
- Barrel screw connection
- Concentrate suction hose (2 m)
- Mixture outlet hose (2 m)
- Water inlet hose (2 m)
- Tap connection (3/4″)
- Plug-in power supply (1.8 m)
- Operating instructions and quick guide
Commissioning and service
SWISSCOOL Kft. installs the MISCEO, sets it up for your coolant, and services it afterwards.
